Reverse Engineering the Amazon Dash Button’s Wireless Audio Configuration

Update: I’ve learned a bit more and as such, see the bottom of the post for an update. I’ve been slow to update this but now that it’s seeming to be gaining a lot of traffic (leading up to 33c3…hmmmm ;)), I want the info to be accurate and fresh.

During the great Amazon Dash Button Hype of 2015, I saw a few of the early teardowns and blog posts and decided to order a few dash buttons of my own to play around with and reverse engineer. Since the hype has burned off, there hasn’t been much in the way of new information about the inner workings of the button.

dash08-pcb — Photo credit: Matthew Petroff

The Amazon Dash button is a neat little IOT device which contains an STM32F205 ARM Cortex M3 microcontroller, a Broadcom BCM43362 Wi-Fi module, a permanently attached (boo!) Energizer Lithium AAA battery, an Invensense I2S digital microphone, some serial flash, and assorted LEDs and SMPS power supplies. For the $5 price tag, the Dash Button packs some serious punch! Just the components are worth a considerable amount more than $5.

Playing around with the button, the setup process on iOS quickly caught my attention. It (apparently*) differs from the Android setup process considerably due to differences in the inner workings of iOS. The Android setup involves connecting to the button via a network called “Amazon ConfigureMe”, while the iOS app appears to use ultrasound-esque audio to transfer information to the button for the initial setup.

*I don’t actually have an Android device on hand to test this with, hence the “apparently”.

Without even opening the button, I put together a basic theory on how the button was setup from the iOS app: The app sends a carefully crafted “audio” packet using the iOS CoreAudio Framework, which is then picked up by the Dash Button’s onboard mic and parsed for Wi-Fi config info. If the Wi-Fi credentials are correct, the button phones home to the Amazon configuration servers and the setup continues, but with further config info being sent directly to the button over the Wi-Fi.

I immediately ripped apart the button in search of a way to piggyback on the ADMP441 digital microphone’s I2S bus. I figured it would be trivial to toss a logic analyzer on the bus and decode what I2S data was being sent to the STM32. Since I2S is a very commonly used and extremely well documented audio protocol, I counted on this being a relatively quick task.

While I was impressed with the density of the design, I was most definitely not impressed with the lack of a visible testpoint on the board for the digital microphone’s data line. The EN (enable), SCK (clock), and WS (word select) lines are easily available, but the SD (data) line is nowhere to be found. I poked around for a bit but didn’t see anything that looked promising. I quickly came to the realization that I was probably going to have to analyze the audio protocol as it came out of my iPhone rather than sniff it on the board. This was about the same time that I also realized this was not going to be the quick and dirty analysis I was expecting…

Armed with my RØDE shotgun mic, I took a new approach. Using Electroacoustics Toolbox, I performed some basic audio analysis on the packets coming from the Amazon iOS app. Based on Matthew Petroff’s Dash Button Teardown, I initially expected some sort of Frequency-Shift Encoded (FSK) modulation scheme. Using the Spectrogram tool, I could see that the configuration data was definitely coming in bursts of 20 packets in a try-retry scheme. It also looked like the frequency of the audio was spread out between 18kHz and 20kHz, which is on par for an audio FSK implementation.

Screen Shot 2015-12-23 at 1.21.00 PM — Spectrogram capture of an entire configuration transmission.

Things got interesting, however, when I took an FFT of an entire transmission. The FFT showed an obvious frequency spread near 19kHz, but lacked the characteristic “double peak” indicating frequency occurrences at both the mark and space frequencies.

FFT of entire configuration transmission.

FFT of FSK modulation. Note the very obvious "double peak". — FFT of FSK modulated data. Note the very obvious “double peak” at the mark and space frequencies.

As I examined the FFT, it became clearer and clearer that the configuration data was not being transmitted with an FSK modulation scheme. At this point, I switched to the basic audio oscilloscope tool to try to figure out what was going on. After the first capture, it was pretty obvious that the data was being Amplitude (AM) modulated, with a carrier frequency of 19kHz.

The data was so clearly AM modulated that I wished I had just popped open the scope to begin with (note to future self)! Here’s a scope capture with a few repeated packets coming through.

After “configuring” a few different dash buttons and examining the transmitted data, I was getting confused as to why there was so much variation in the peak levels of the packets. I checked for ground loops and background noise before transmitting, and confirmed that the noise floor of my microphone setup was far below the variations in peak amplitude I was seeing. After staring at a few captures, I started to notice that the “variations” were consistent in their amplitudes. Looking some more, I realized that it wasn’t noise at all: the data was intentionally being sent with four distinct amplitude levels!

Clever, clever Amazon is using Amplitude-Shift Keying (ASK) modulation with 4-level binary to send the data across to the Dash Button.

The big benefit to this modulation scheme is that it’s got a 2-to-1 compression ratio, so the packet length is theoretically half of the length of an FSK packet. The downside, however, is that the Signal-to-Noise Ratio is halved. This isn’t really a problem, since the data is sent 20 times, and the transmitter (iOS device) can be closely physically located to the receiver (Dash Button).

After these discoveries, I came to a few conclusions:

The data is being sent from the iOS app using an ASK modulation scheme, with a carrier frequency of 19kHz. It’s resent 20 times before moving on.
Each “bit” (really, two bits) has a nominal bit time of 4ms. There are four levels of bit amplitude and there is no true zero. Every bit level, including 00, has some amplitude associated with it.
The first chunk of data is always the same. It looks like a simple calibration sequence, allowing the button to set the decoding thresholds for later down the road.
There appears to be both a start and stop glitch on all of the packets. This could be a byproduct of how Amazon is building their ASK packets in-app, or the hardware codec starting and stopping on the iPhone. This glitch isn’t harmful, because the transmission is stable by the time any meaningful data is coming through.
The packets are not of a fixed length. Entering a longer SSID or passphrase results in a longer packet.

Now that I had a rough idea of how data was transmitted, I wanted to give decoding some known data a shot. This is where things got really interesting for me, because I’ve got basically no experience in data transmission or communications theory. Luckily, I have a decent eye for patterns, which helped considerably in figuring out what data was represented where in each transmitted packet. I began by choosing an SSID and passphrase that were fairly easy to recognize. I ended up using 7’s and *’s in various combinations and orders. I quickly started to recognize the waveforms of each coming through in the data, but it wasn’t immediately clear how the characters were being translated from their ASCII representation.

7_* (3) copy — Packet containing both 7 and *.

I was getting nervous that some type of encryption was being used on the characters to prevent bored nerds like me from easily snooping on the packets.

In an effort to bruteforce whatever translation was taking place, I sent the characters 1 through 9 in the password field. I assigned amplitude level “1” on the received data as binary 00, level “2” as 01, level “3” as 10, and level “4” as 11. I recorded the ASK levels of each character, and busted out a table of what the received binary data looked like in comparison to the known ASCII value of each character. The first thing that was clear was that the binary representation of each character definitely related to the next, which was good news. This ruled out any sort of encryption or lookup-table based character set. The next observation was that the binary data was decrementing, rather than incrementing as the transmitted ASCII characters should be. It was also evident that it was somehow scrambled or flipped from the known representation.

After a bit of bit order manipulation, I arrived at three conclusions:

The levels I picked (level “4” as 11, and level “1” as 00) were incorrect. Flipping these levels yields non-inverted bits, which then results in upwards-counting binary data.
Each 8-bit ASCII representation of a character was actually being transmitted “backwards” from how I expected, with the first 2-bits transmitted representing the LSB end of the ASCII character. Characters themselves are transmitted in the order they are entered.
Each block is 4 pulses long, which represents a total of 8 bits of data.

Armed with the encoding info, my final task was to write a piece of software which would listen to the audio sent by the iOS app and decode it into various representations. Doing it by hand was fun for a bit, but got tedious quickly. I rather arbitrarily settled on MATLAB, mostly because it’s easy to interface with audio components, manipulate WAV data, and filter and analyze datasets. I also figured it would be a good way to sharpen up my MATLAB since it’s been a bit since I’ve fired it up.

With a few hours of coding, I’ve got a script that can listen via my external mic, trim the acquired data to a single packet (albeit semi-manually), and separate and decode each block into it’s decimal, hexadecimal, and ASCII representations. It then saves this as a CSV file.

To to this, the MATLAB utilizes the built-in MATLAB AudioRecorder function. It then waits for user input in regards to the bounds of a single packet. With these, it trims the data and performs some simple filtering and peak detection. The peak detection is done using a Hilbert Transform (a very common and useful digital peak detection method). It then finds each subsequent peak and indexes them based on their amplitude to find the corresponding binary data.

Captured and trimmed audio data displayed in MATLAB.

The same packet after filtering and peak detection. Each level of peak is indicated with a different colored symbol.

I also (for no good reason) wrote a tool that goes in the reverse: punch in an array of 4 levels (1/2/3/4), and out comes a psudeo-ASK representation of it.

Using these software tools and a several packets, I discovered a few things:

The first two blocks of hypothesized “calibration sequence” is definitely that. They’re 10 bits each, which doesn’t match the rest of the packet. I’ve looked at hundreds of packets and they all start the same way. My MATLAB code actually uses these to find out where to start looking for real data. Handy!
Block 3 (Decimal rep) is the total length of the data which will come after it, in “number of blocks”.
Blocks 4-9 in every packet appear to be some sort of UDID/CRC. I’ll come back to this later.
Block 10 (Decimal rep) is the length of the SSID, in blocks.
Block 11 (ASCII rep) is the first char of the SSID. In this example, it’s only one character long.
Block 12 (Decimal rep) is the length of the passphrase. This isn’t always block 12, it’s dependent on whatever the length of the SSID is. It’s also always present immediately after the SSID, regardless if there’s a passphrase or not. If there isn’t, it’s just decimal 0, indicating that there is no passphrase.
Block 13 (ASCII rep) is the first char of the passphrase, if it exists. It’s also only one char long in this case.

Various blocks numbered by order of occurrence.

Hypothesized purpose of each block of data.

The last real question remaining is: what are blocks 4-9? In every packet I sent, they were different. I immediately thought some sort of CRC but the packet changed at times when I didn’t change the SSID or the passphrase, so it’s hard for me to tell. I’m leaning toward a on-demand Unique Device identifier (UDID) generated in the iOS app, potentially in combination with a CRC. With 48 bits to spare, a 32 bit UDID along with a 16 bit CRC seems more than reasonable.

With this scheme, device setup would look something like this:

User logs into their Amazon account from the app. This takes place every time a Dash Button is configured. Amazon then generates a “short” (<=48 bits) UDID for the Dash Button which associates it with an Amazon Account. They also store this somewhere on their servers.
The SSID and passphrase for the Wi-Fi connection are sent via audio packet to the Dash Button, along with the UDID that was just generated.
The Dash Button parses the data and attempts to connect to the Wi-Fi network. If it’s successful, it phones home to the Amazon servers with the supplied UDID. The Amazon servers “register” the button as active and tell the iOS app to continue setup.
From here, any further configuration data is sent to the button over the network, including what account is registered to the button (likely with more sophisticated verification than I’m alluding to*), what product the button is ordering, and shipping preferences.

*Just looking at the string dumps from the Dash Button firmware show that there is more sophisticated authentication taking place, it’s just hard to say when. I’m tempted to decompile the firmware just for fun, but I’ve already spent enough time looking at this damn $5 button…

And of course, here’s the final outcome of my efforts:

I’ve attached my MATLAB code in the off chance anyone wants to try this at home. It’ll probably take some tweaking for your specific setup.

Here’s the MATLAB code on GitHub.

That’s all I’ve got so far. I’m still curious in figuring out the six mystery blocks: if you’ve got any thoughts on it feel free to let me know. I might make another followup post taking a look at the firmware using IDA or something in the future, we’ll see. And of course if any Amazon employees want to get ahold of me and tell me how far off I was, I’d be okay with that too 🙂

Thanks to Matthew Petroff, GitHub user dekuNukem, and anyone else whom I may have forgotten to credit.

EDIT: It’s been pointed out to me by a few looking deeper into the button’s internals that the modulation scheme actually IS FSK with four carriers at 18130, 18620, 19910, and 19600Hz. I believe the reason why it so strongly resembled ASK when I observed the audio packets is because of the awful frequency response at the higher end of my phone, my mic, or both. A linear attenuation right at the top of the audible spectrum would explain the highest frequency being measured as lower amplitude. That being said, all encoding and modulation schemes still apply, with the highest frequency encoding representing binary 11.

In addition, there is in fact a CRC16 attached to each packet. It’s the first two bytes after the packet length declaration. Also, that length byte includes the length of the two bytes of CRC. That leaves 32 bits for the UDID, which is POSTed to the Amazon servers at http://dash-button-na.amazon.com/2/r/oft?countryCode=XX&realm=XXAmazon where XX us US for the United States, DE for Germany, etc. This jives quite strongly with my initial guess of button registration. Thanks to Benedikt Heinz (@EIZnuh) for sharing some of his research into the button’s firmware!

December 29, 2014January 16, 2015

3D Printer Review: QU-BD OneUp

Background

I’m a Senior at the University of Colorado, earning a Bachelors Degree in Electrical Engineering. While working on our senior capstone project, my team has used done enough 3D printing for me to consider purchasing one myself. One of my teammates has access to an expensive Stratasys Objet, which has amazing print quality but costs an arm and a leg to fill with resin, and is always in use since it’s owned by the company he works for. After following the 3D printing buzz for several years, I decided now would be a good time to jump in. Printers are affordable and easy to get ahold of, and there are plenty of brands and models to choose from.

I’d been researching different printers for a while, so I had an idea of what type of printer I wanted to invest in. I liked the early MakerBots, but their push to closed-source consumer turned me off. The formlabs form1 is a beautiful and very capable printer, but the cost is too high, and I’d like something that I can tinker with. There are a bunch of other printers, like the XYZprinting Da Vinci, that have a great design but have one or two fatal flaws (The Da Vinci, for example, has proprietary filament “cartridges”, which can be manually reloaded but are a apparently a big pain). Eventually, I found a Kickstarter printer that I’d bookmarked about a year back, the QU-BD OneUp.

The QU-BD OneUp and TwoUp are the exactly the type of printer I had been looking for: relatively inexpensive, open source, and self-assembled with a large user base and many publicly available improvements and mods. Assembling the printer is a big hurdle for some, but I’m all about it. There’s no better way to figure out how something works that putting it together yourself. It also lends to easier diagnosis and repair when something inevitably doesn’t work right.

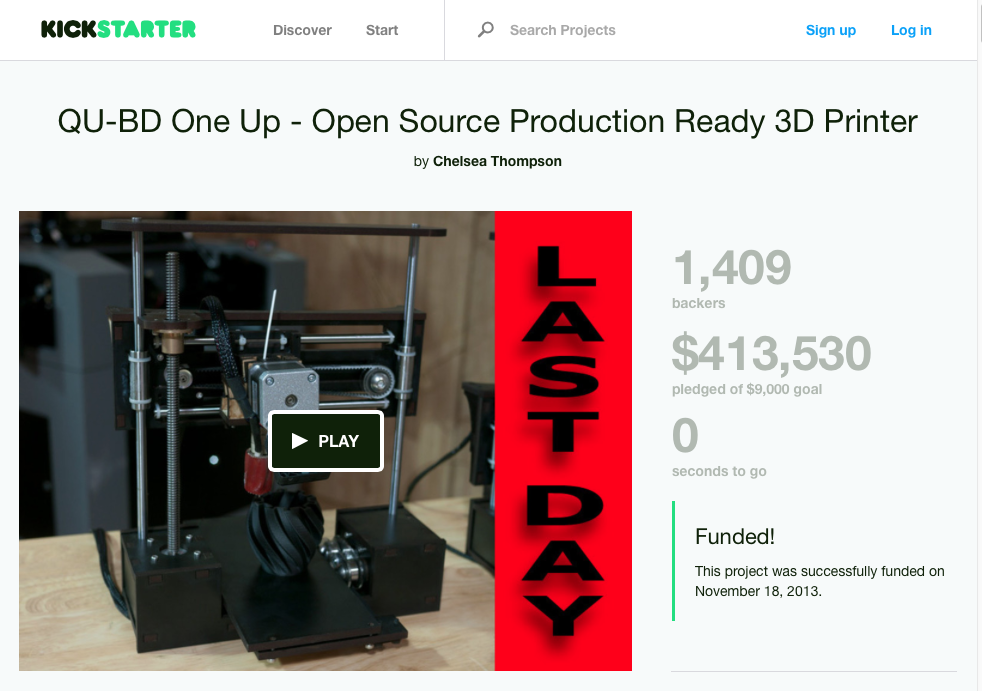

The reception from the Kickstarter campaign was lukewarm; many early backers were rubbed the wrong way when their printers were long delayed and missing various parts, but those who got their printers assembled were overall pleased with the construction and print quality. I’d read more than a few upset posts on the fabric8r forums regarding poor communication and arguably slimy behavior on part of QU-BD. Much of this behavior I chalked up to needy or whiny Kickstarter backers. At this point, it’s pretty much common knowledge that almost nothing on Kickstarter ships on time. I multiply any promised product ship date by two. Early backers can be entitled and unforgiving when ship dates slip, and I took that into account when reading product reviews. The Kickstarter campaign ended over a year ago, and it appeared that all backers had received their printers. Erring on the side of caution, I decided to spring for the $199 OneUp rather than the $299 TwoUp in the off chance that I did have an unpleasant experience.

Shipping

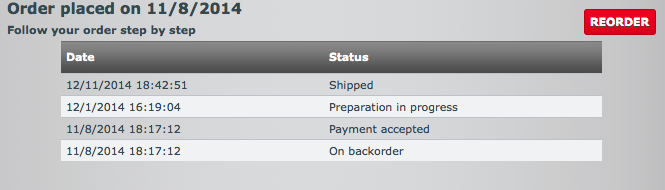

I ordered my OneUp on November 8^th, and QU-BD gave an estimated shipping time of 2-4 weeks. Then came the waiting. Following my rule of thumb, I estimated 6-8 weeks for delivery, and planned on getting my printer as an early Christmas present to myself. After all I’d read, I knew it would be slow to ship. And boy, was it slow to ship. It took just over three weeks for the order to change to the “preparation in progress” stage on December 1^st. From there, another 10 days until the order was actually marked as “shipped”.

This is one stage in the order process where I can sympathize with some upset customers. When an order is marked as “shipped”, one would assume that means it’s in the mail. Not quite. I don’t know exactly how QU-BD runs their shipping, but I’d guess they pile a bunch of orders together, and then schedule one big pickup date. My order, for example, was marked as shipped on December 11^th. The pre-shipment information was sent to USPS on December 12^th, but the order wasn’t actually picked up by USPS until the 19^th of December.

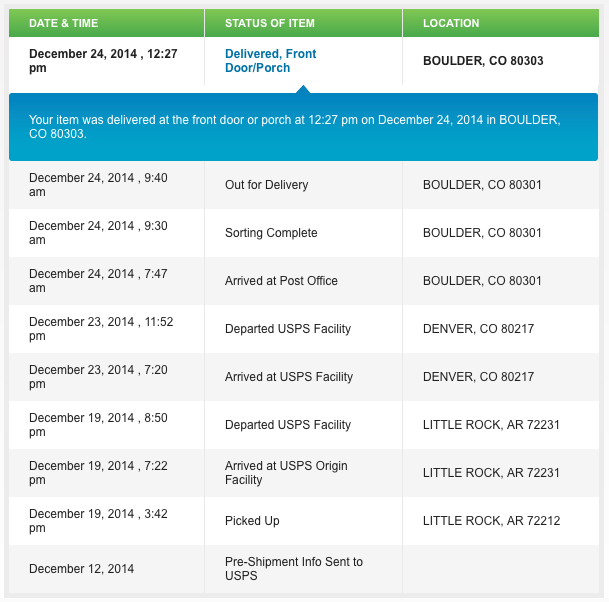

My OneUp was shipped via Priority Mail 2-Day, and was scheduled for delivery by Monday, the 22^nd of December. However, I grew concerned when the tracking info wasn’t updated after the initial departure scan. Monday came and went, and (to no one’s surprise), there was no delivery. I suspect the package was knocked to the side at a sorting facility and got ahold of USPS. To their credit, the package was found, and was sitting on my front porch come Christmas eve.

Here’s my take on QU-BD’s shipping process, which some think might be their biggest weakness. Yes, it’s painfully slow. Was I upset about the shipping time? No. In the end, I got the printer, and the small mix-up in the mail was in no way a fault of QU-BD. In the era of free Amazon 2-day shipping, it’s easy to get spoiled and frustrated with the long lead times and slow shipping of a smaller, family-run company. But you’re paying almost nothing for one of these printers. QU-BD is basically sourcing all of the parts, bundling them together, and shipping them out for less than you, as an individual consumer, could do on your own. Not to mention that lead times on equivalent parts from China would be equal to, if not greater than, the lead time of the printer from QU-BD. These guys are making razor-thin margins on these printers by selling them so cheap. Moreover, from my understanding, there are only a few of them running the whole operation. I absolutely agree that faster shipping times would be nice, but as consumers, we can’t have our cake and eat it too. I could have a comparably-spec’ed printer sitting on my desk tomorrow, shipped with FedEx Next Day Air, but I wouldn’t be paying 200 dollars for it. It would be more like $1500. In the end, if you want a decent, but inexpensive printer, you’ll probably end up waiting a while for it. If you want it right now, it’s going to cost you more, plan and simple.

Assembly

Upon opening the box, I found it very nicely packed.

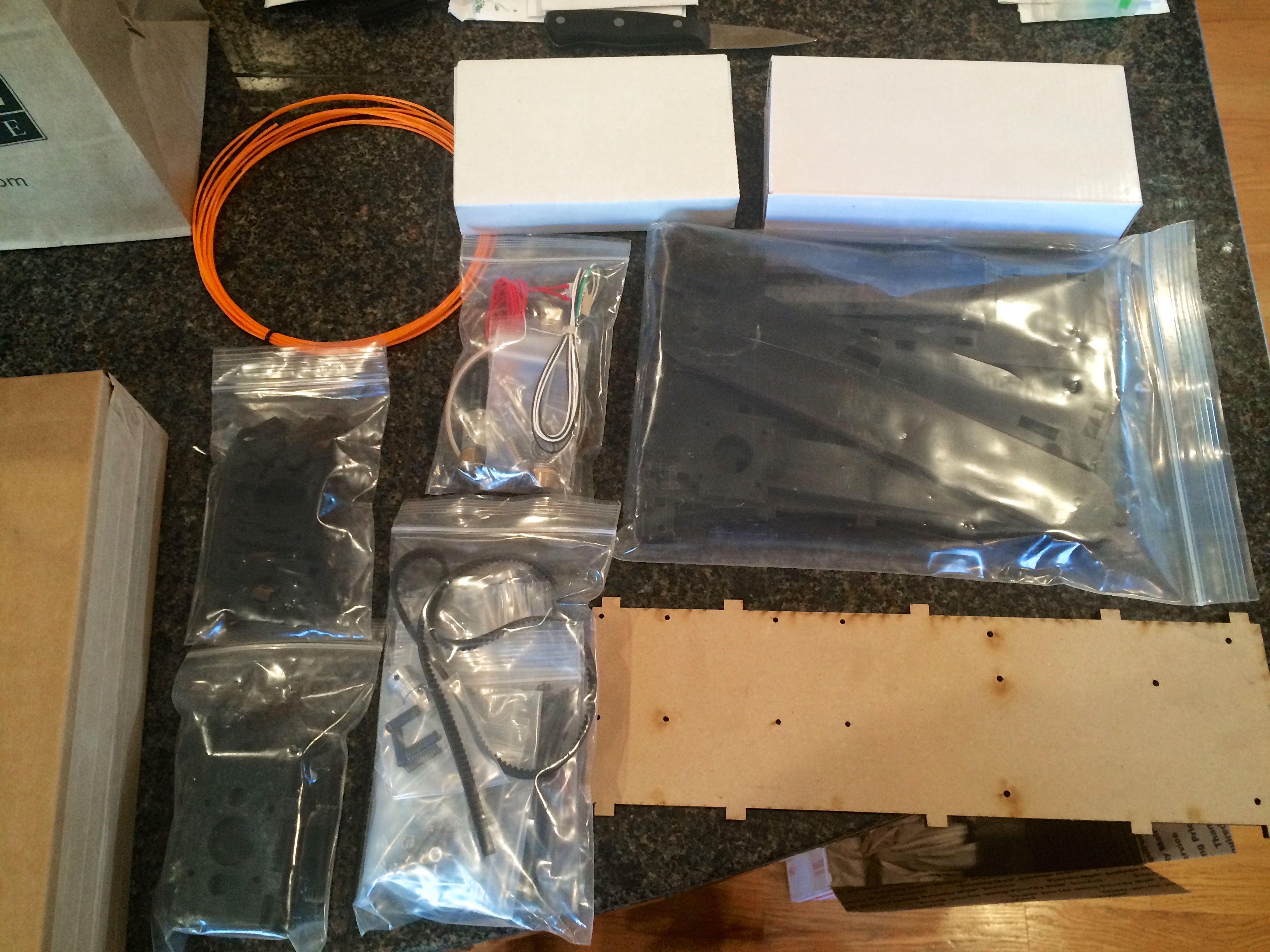

QU-BD is able to fit a surprisingly large amount of parts into the medium flat-rate box they ship in.

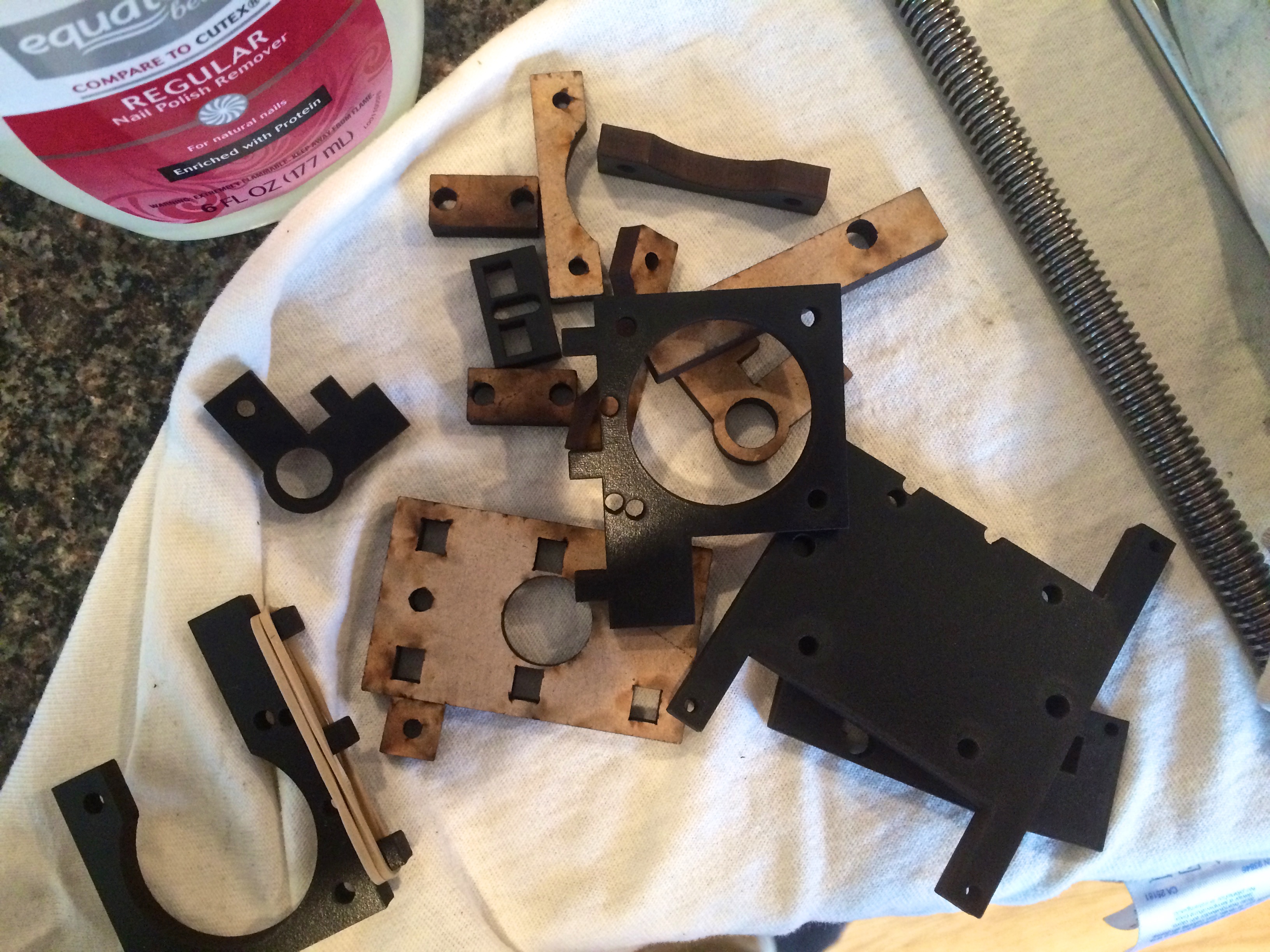

Nothing has room to shift around too much during shipping, which in theory should keep all the parts intact. That being said, a few of the thinner MDF parts in my kit came fractured. They all snapped at very thin points. None were completely broken, however, so they were saved with a little bit of CA glue. I took a quick inventory, and, as expected, I was missing some parts. Namely, my kit didn’t have the 6 M3 flat washers or the 4 M4x25 hex head bolts. QU-BD sends out one shipment of missing hardware for free, so I wasn’t too torn up about it. I ended up going to my local hardware store and getting all of the missing parts for less than a buck, since I just wanted to put it together. As many build logs suggested, I cleaned off all of the machined rods and laser cut parts before beginning.

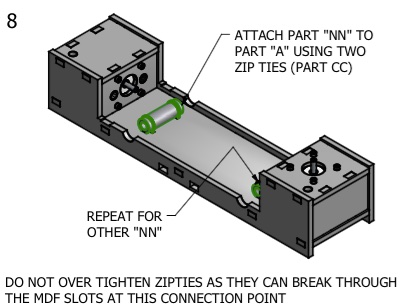

The actual assembly of the printer was, in my honest opinion, a total blast. As a kid who blew through countless Lego sets, it felt very familiar. The instructions are well-made and pretty easy to follow. Some of the ALL CAPS assembly notes feel a bit “yell-ish”, but they did a good job of catching my attention. The part naming convention was also a bit strange, but it’s clear they were named from an engineering perspective.

During my assembly, a few simple things came to mind that would really improve the build experience. The first is labeling of individual hardware bags with their part name and designator. I kept having to flip back and forth to the BOM at the beginning of the assembly to verify I was using the correct part. Furthermore, actually identifying the parts inside their bags was a little tricky. I was able to figure out what parts were which using a Bolt Size-It gauge, but some buyers might have a harder time. A laser-printed sticker on each bag would cost almost nothing and make a big difference.

In addition to labeled part bags, a small identifier on each MDF part would be super useful. Depending on the part, this could be etched by the same laser cutting machine QU-BD uses to cut the parts, or a small sticker. Once again, it would be a simple and cheap change, but would really improve the user experience.

Lastly, a single-page spreadsheet BOM, either shipped with the parts, or included in the manual would rock. Cross-checking parts against their name and designator would take about half the time as it currently does. Once again, these aren’t deal breakers, but would be easy changes for QU-BD. I have a hunch they might also help QU-BD ship all of the parts in the kit.

All in all, assembly went pretty smoothly. I do have a few minor quality gripes. My Geeetech Printrboard clone came with a very poorly soldered SD card slot which probably shouldn’t have made it past QC (assuming they have QC). I have access to a solder reflow station in the lab I work in, so I’m just going to heat it up and fix it myself. Not a huge deal considering the board works flawlessly otherwise.

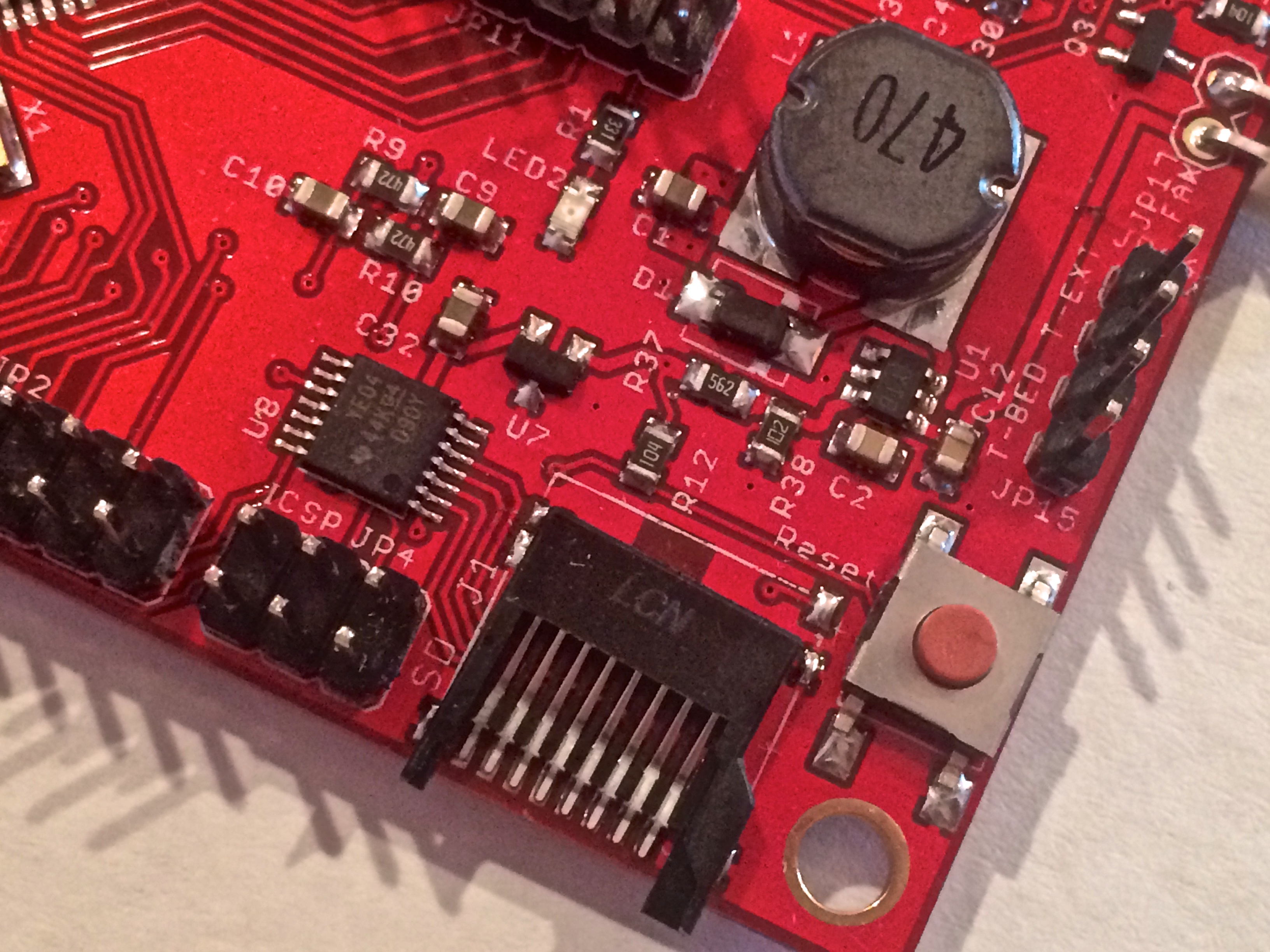

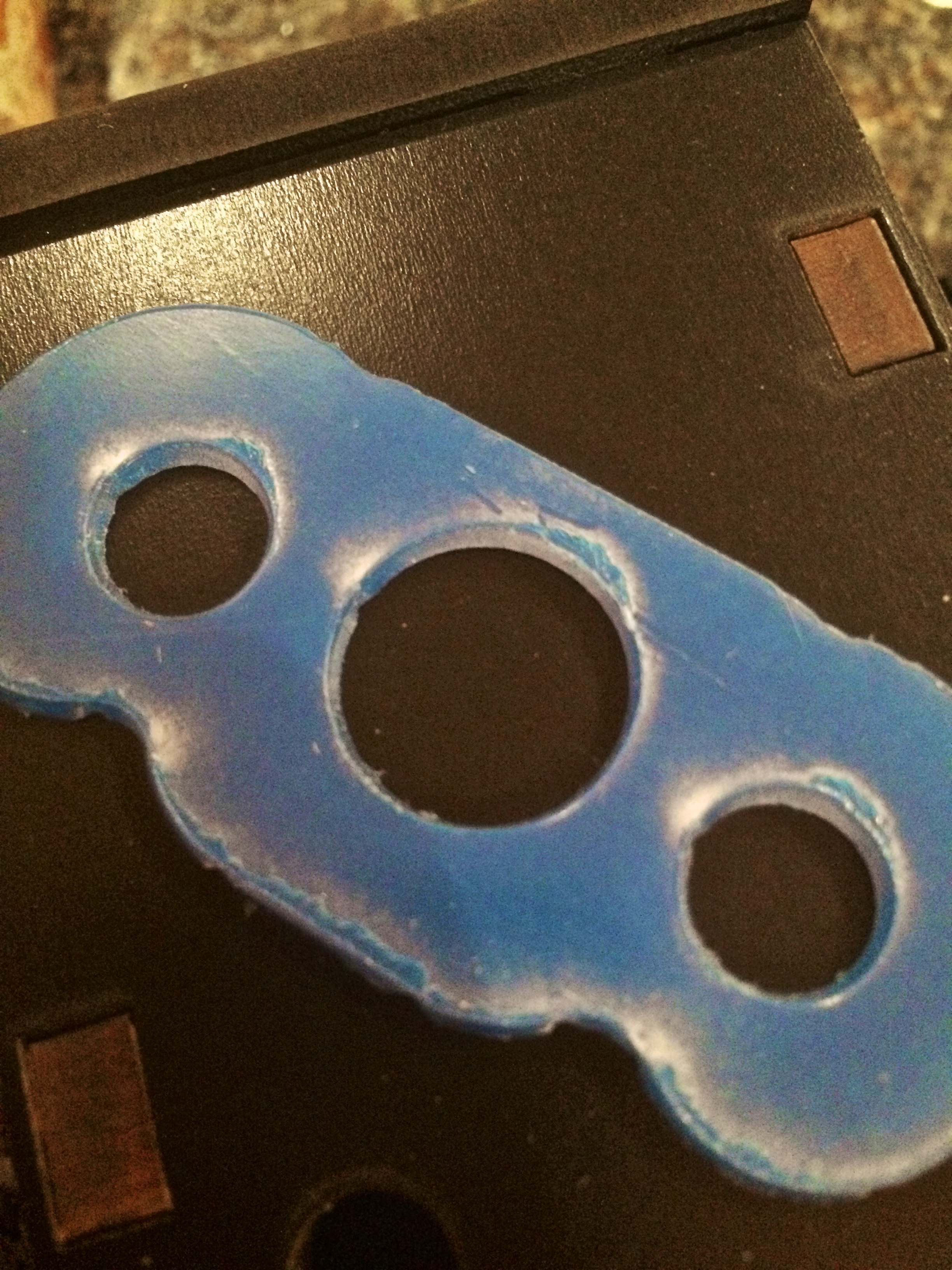

I also had a bit of a laugh at the some of the acrylic parts that ship with the kit. What was my Y-drive cut with, scissors? Again, no loss, since I plan on printing a well-proven Y-drive upgrade on Thingiverse once I get more filament.

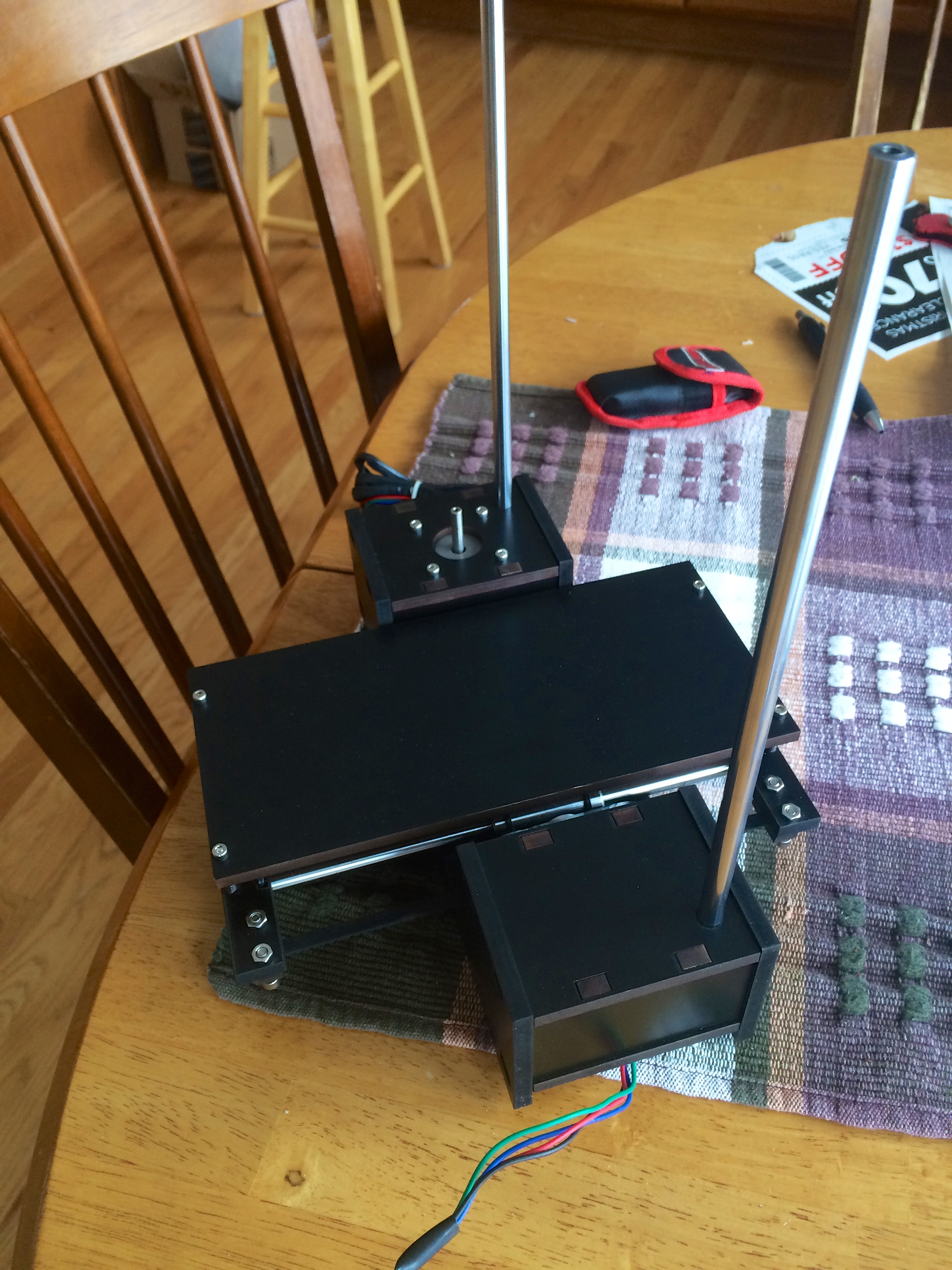

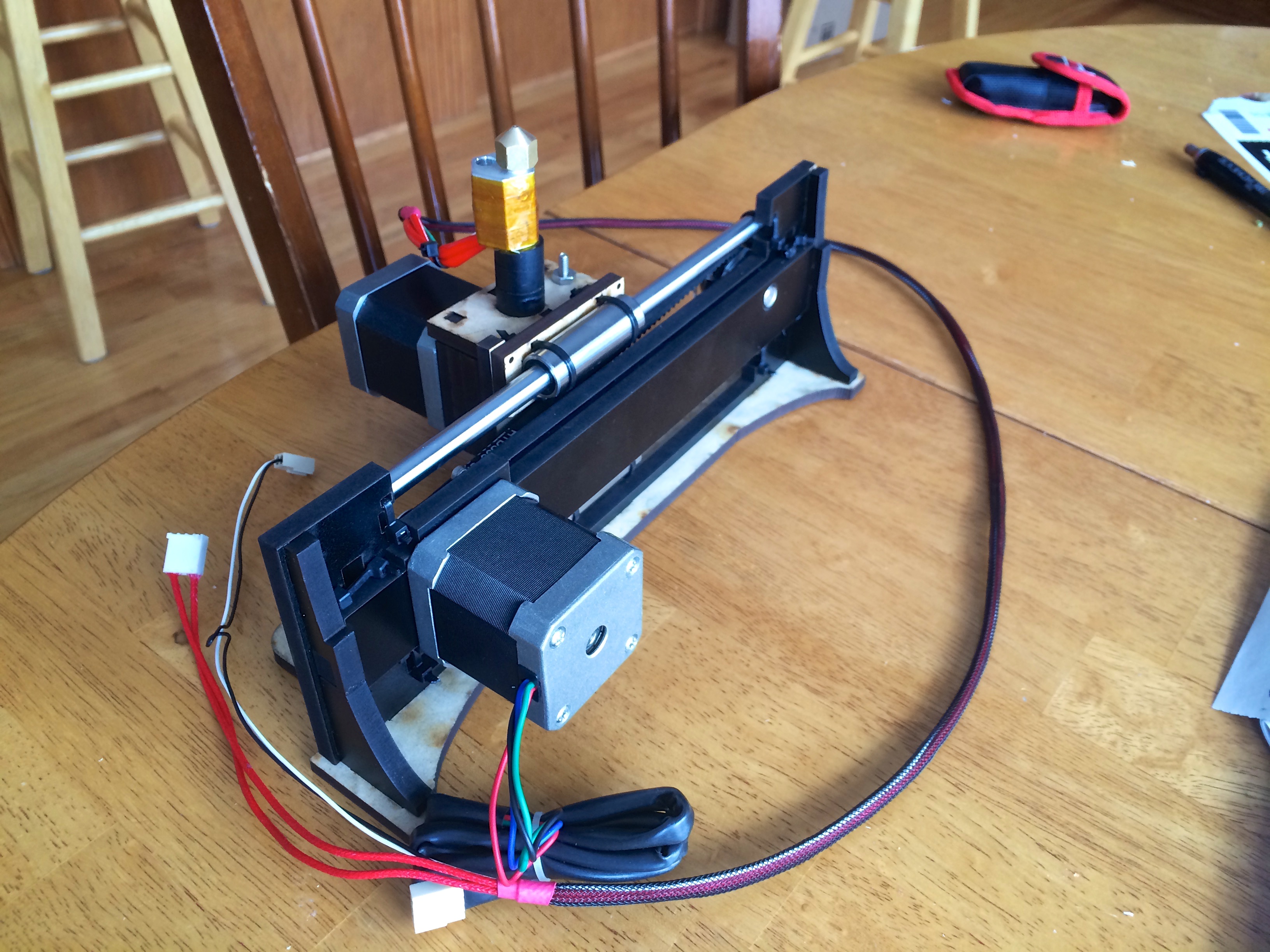

I didn’t include too many pictures during assembly, since it’s rather uninteresting. Here’s a few pictures of the major milestones:

Completed extruder and hotend, attached to the X-drive. I had some 1/8” TechFlex sleeving laying around and covered my extruder and thermistor wires. I really like the look, and it keeps the wires bundled and out of the way. I’m planning on removing the ugly, stiff plastic covering on all of the stepper wires and replacing it with the same sleeving. If it’s one thing this printer design lacks, it’s cable management!

Completed base and Y-Drive assembly.

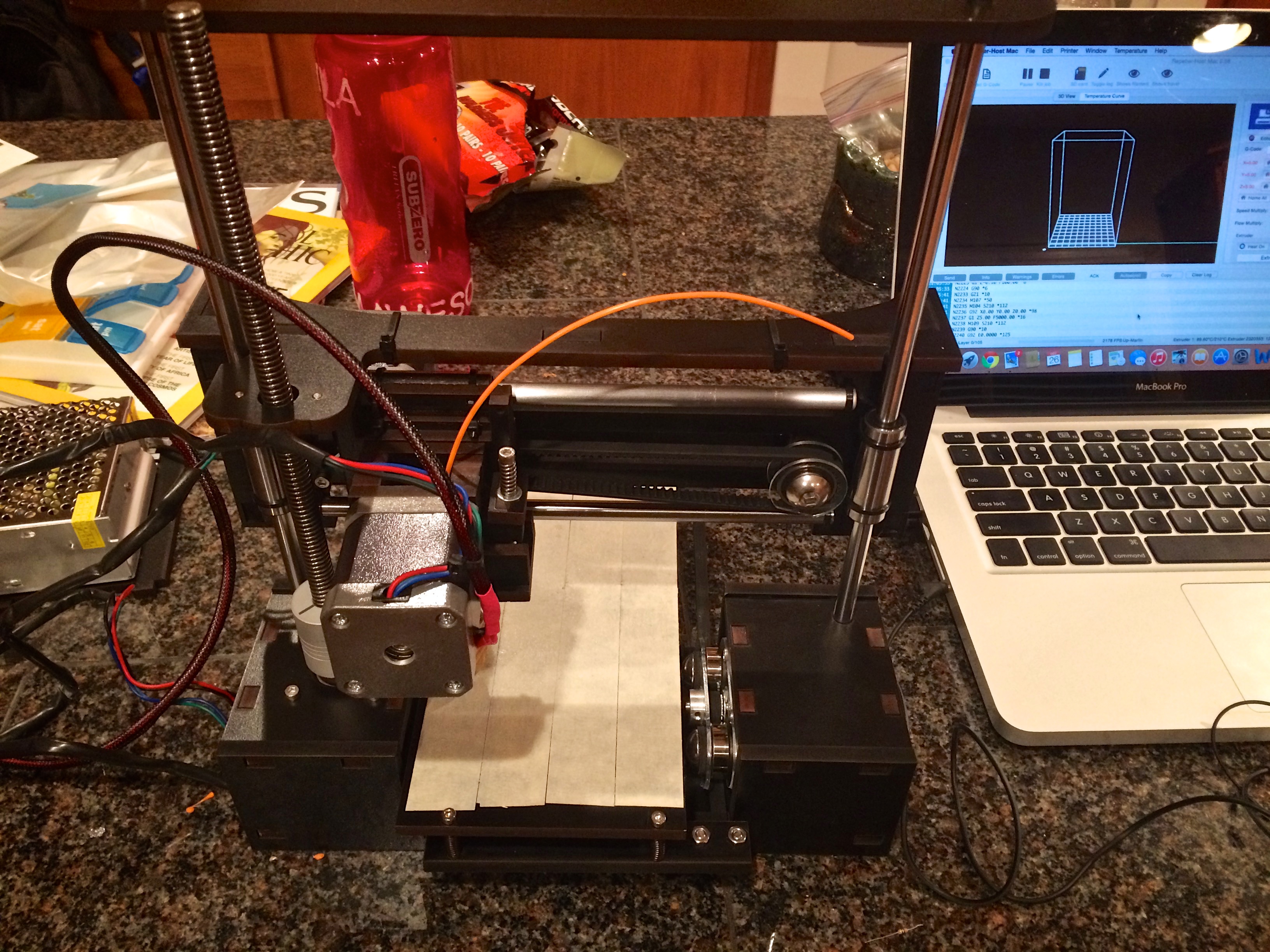

Final printer assembly completed! All in all, it took me about 4 hours to assemble the entire printer, barring breaks, distractions, and trips to the hardware store.

Setup and first print

During my ~2 month wait, I’d taken the liberty of setting up Repetier Host and Slic3r on my MacBook. I watched a few YouTube videos [1] [2] that helped me set up the host software with little trouble. I connected the printer, heated the extruder, fed in some filament, and….nothing came out. After being sufficiently stumped for about an hour, I took off the extruder nozzle and found it was severely clogged with brass filings from the milling process. It took me forever to unclog it, even with a 400 micron drill bit. I eventually got it unclogged, but in the process, I believe the nozzle was damaged. The hole is slightly larger than the original 0.4mm, and I suspect it’s not perfectly round. I’m hoping that I can get a replacement from QU-BD since, after all, it did come in an unusable form.

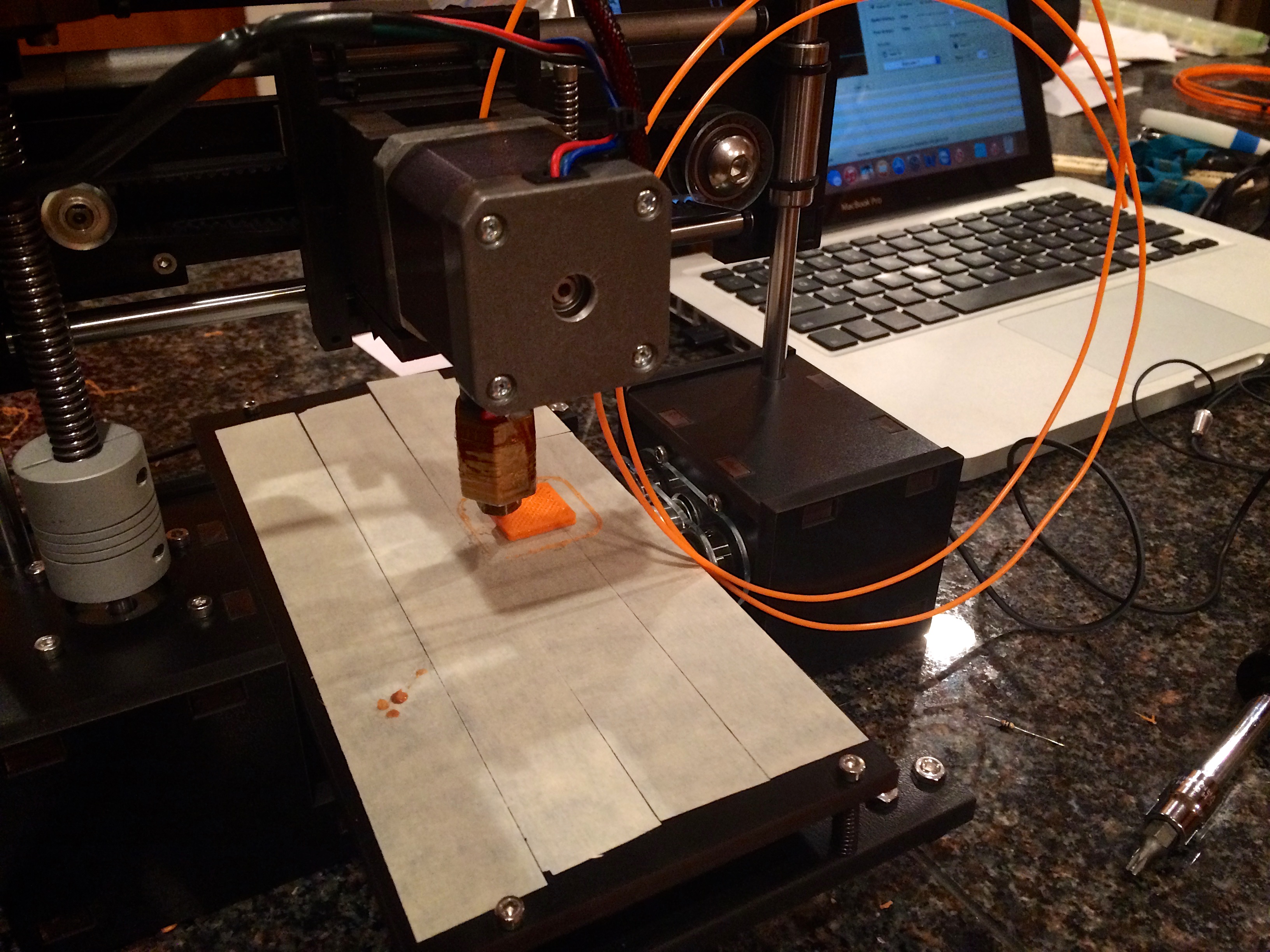

After unclogging the nozzle, I ran a quick test print of a 20x20x20mm cube. The printer was working! After some tuning in Slic3r and Repetier Host, I’m getting decent print quality, even with my damaged nozzle. I didn’t bother calibrating for the filament, since I only had a few meters of the stuff. Once my shipment of Hatchbox filament arrives, I’ll calibrate for flowrate and do some temperature tuning.

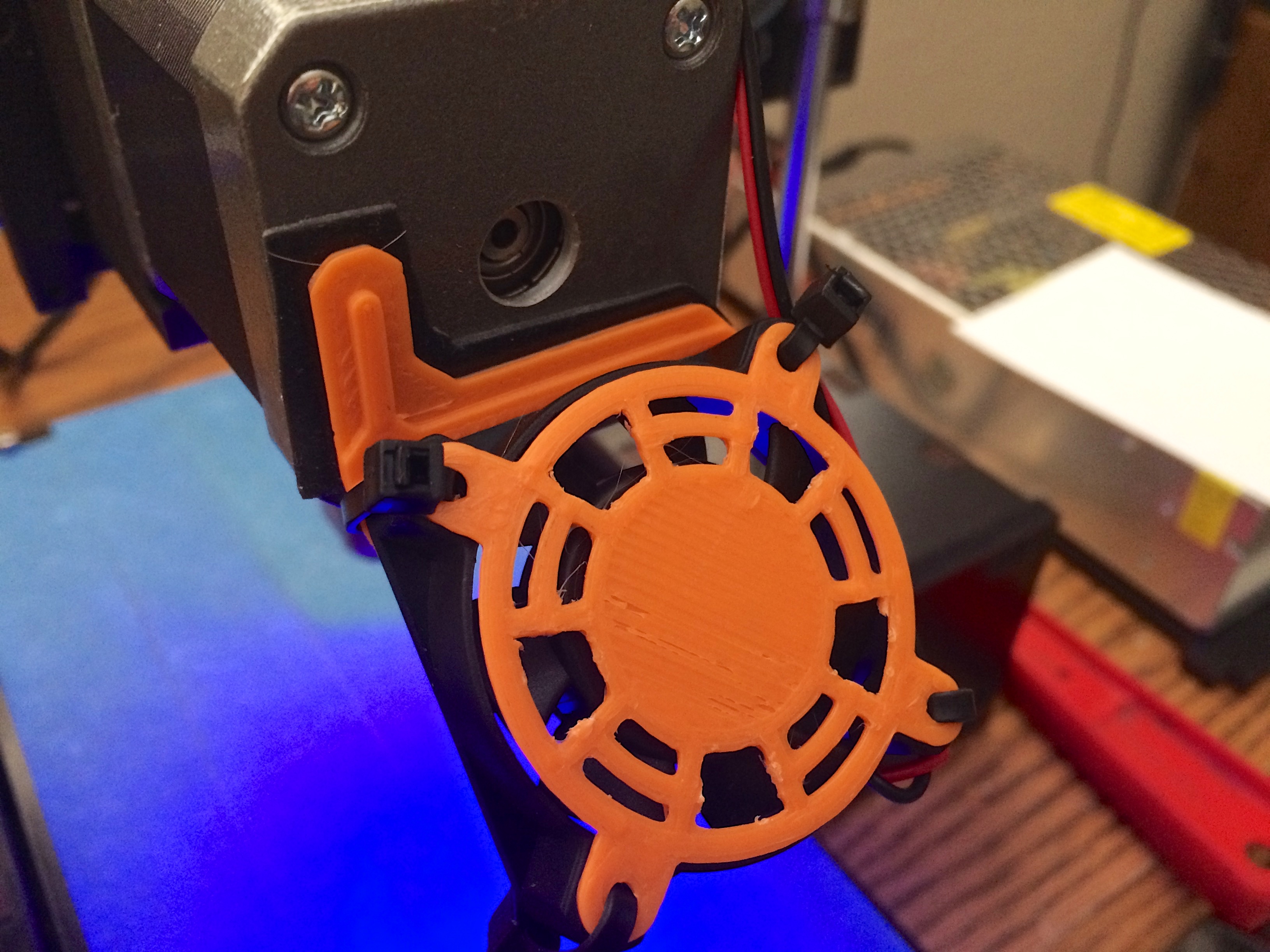

So far, I’ve printed a small fan bracket and fan guard for the 40mm fan that’s included in the kit. I’m pretty happy with the quality of these first-day prints!

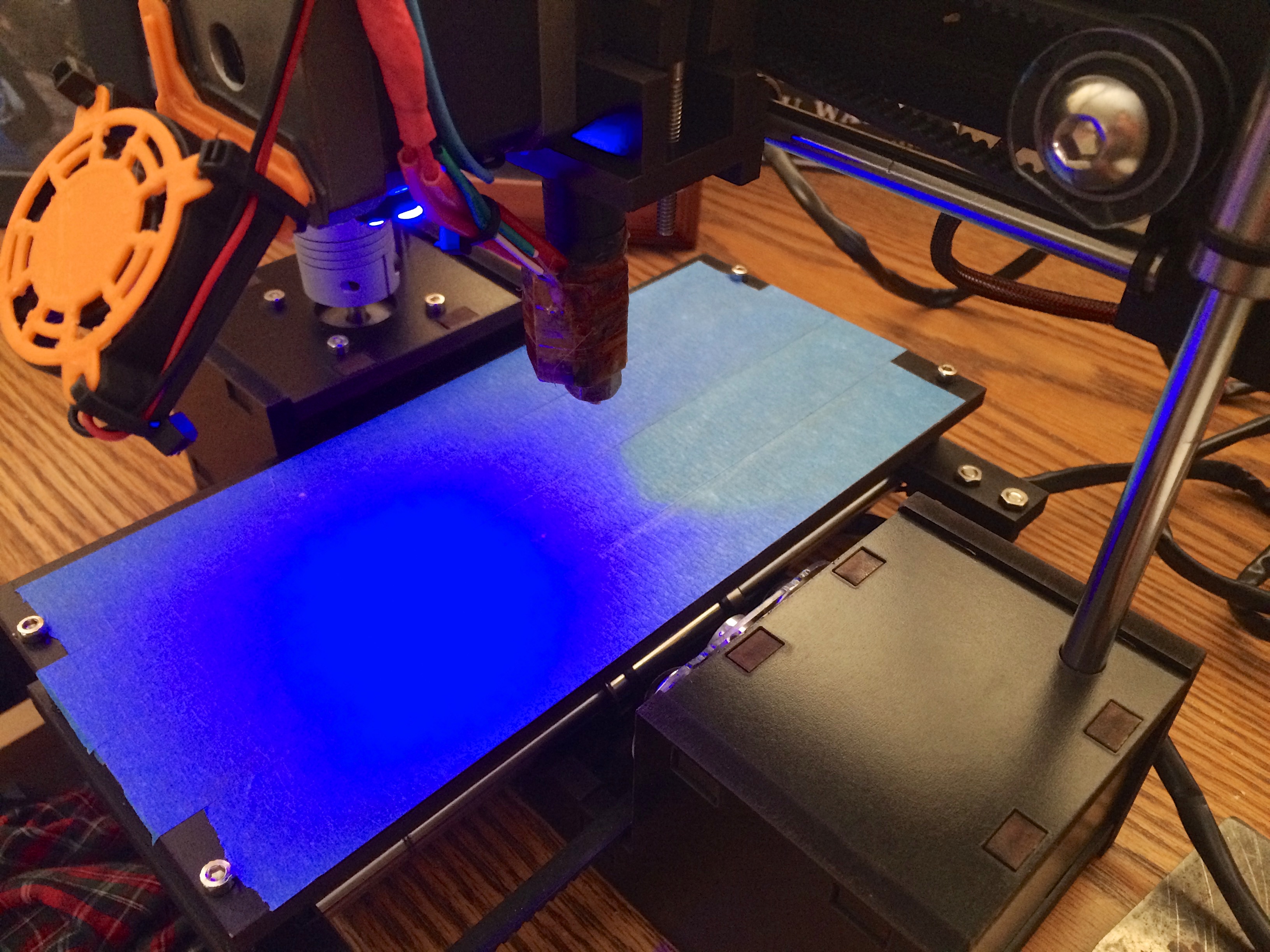

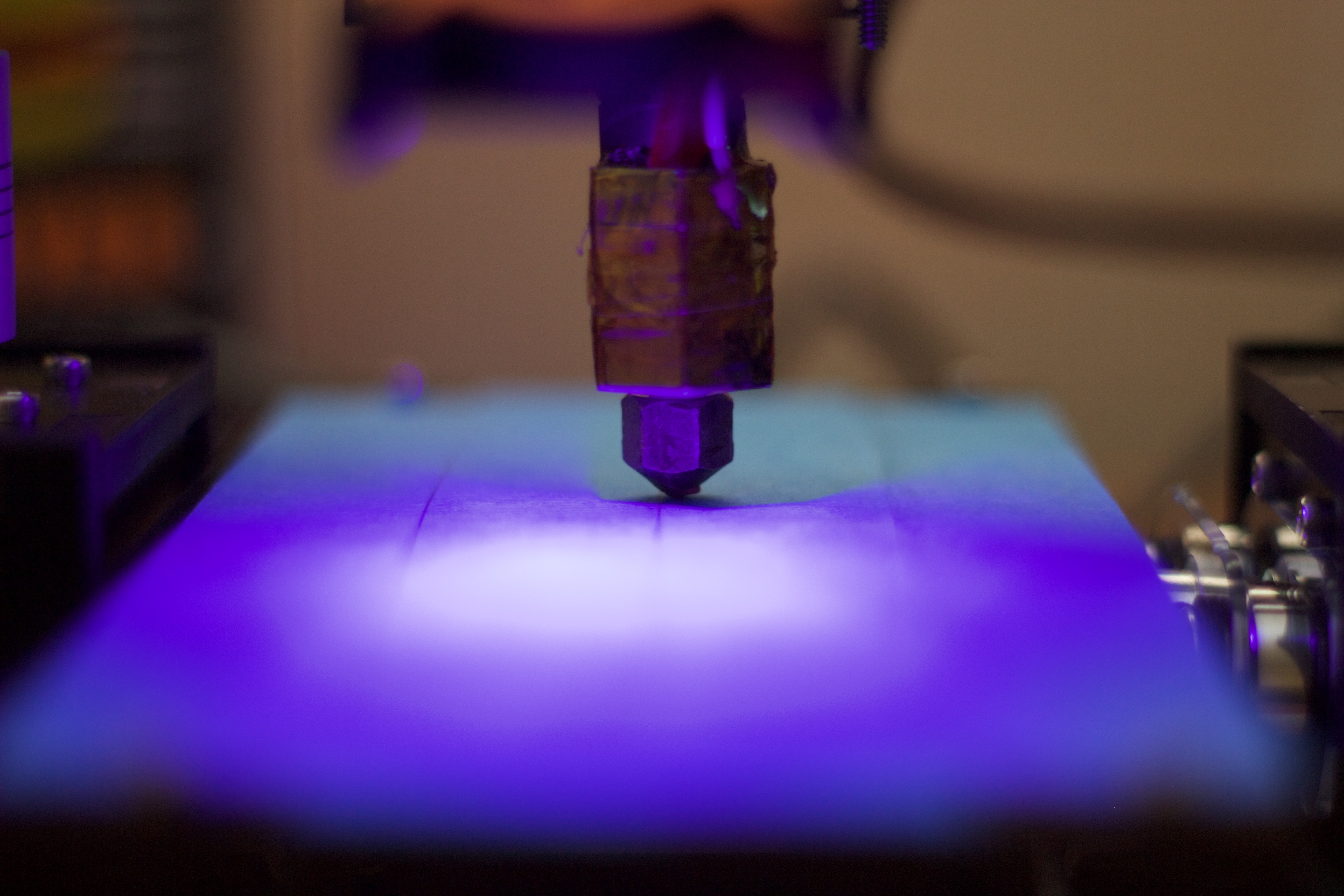

I also added a few ultra-bright blue LEDs under the extruder stepper to light the bed. They’re just tied to a 5V output on the Printrboard’s expansion headers. They illuminate the build platform, and they also do a good job of looking cool. Everyone loves blue LEDs!
